Acrylic Base

Updated: All, Assembly, USB Tester Leave a Comment

  1. 4x Long Screws
  2. 4x Tall Stand Offs
  3. 4x Short Stand Offs
  4. 1x 50x31mm Acrylic Sheet

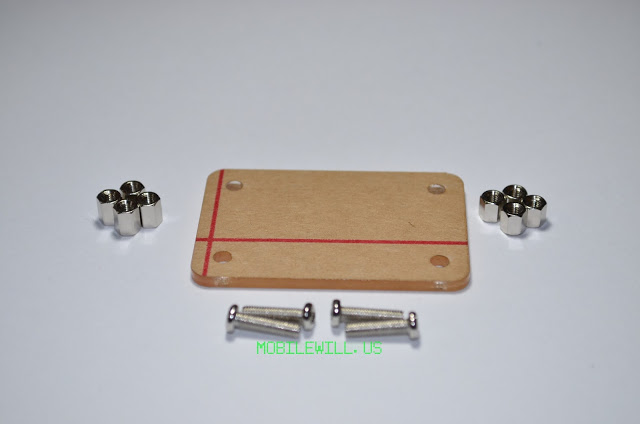

Acrylic Base Parts

Acrylic Base Parts





Start by putting the longer screw through each of the corners and then thread the longer of the hex nuts.



AcrylicBase_Tindie

Now you can put the USB Tester on top and then the shorter hex nuts to tighten it down.

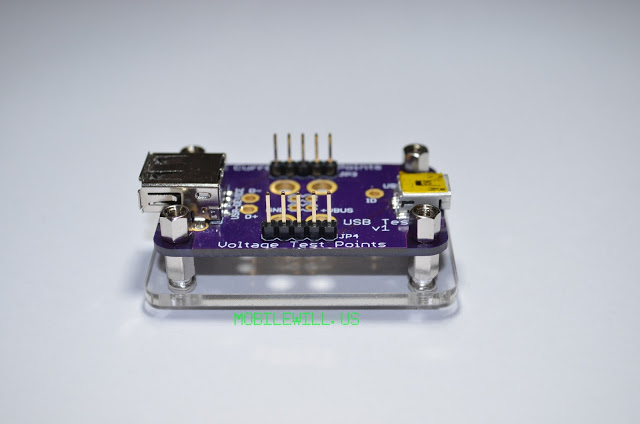

Acrylic base with USB Tester

Acrylic base with USB Tester

If you have the OLED Backpack you can attach it now.

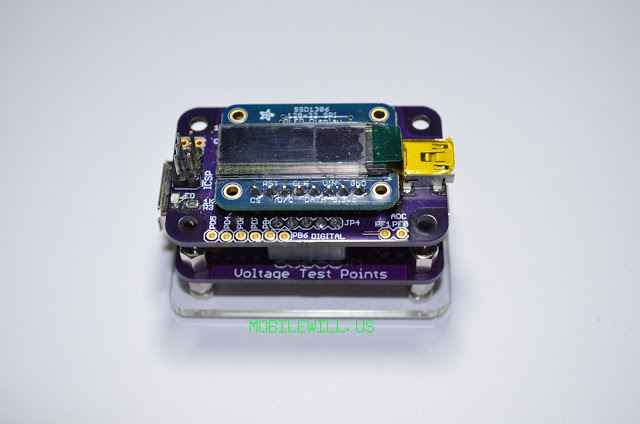

Acrylic Base with USB Tester OLED 1.X

Acrylic Base with USB Tester OLED 1.X

The great thing with the Sick of Beige base is that it adds a bit of weight and when using a DMM, it keeps the leads from going too far into the holes and touching each other. Not to mention touching anything else on your workbench.

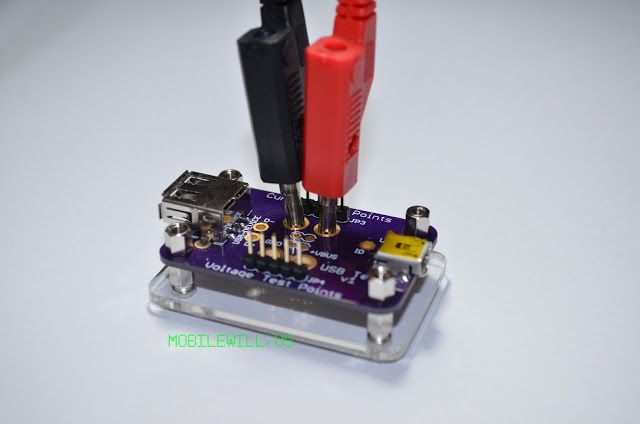

Acrylic Base and DMM

Acrylic Base and DMM

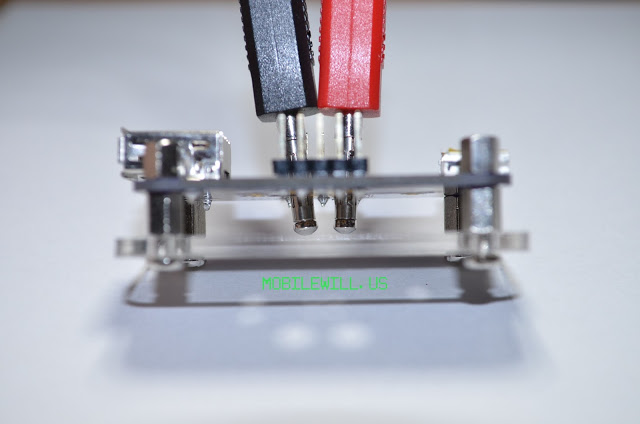

Acrylic Base and DMM

Acrylic Base and DMM
