[cs_content][cs_section parallax=”false” style=”margin: 0px;padding: 45px 0px;”][cs_row inner_container=”true” marginless_columns=”false” style=”margin: 0px auto;padding: 0px;”][cs_column fade=”false” fade_animation=”in” fade_animation_offset=”45px” fade_duration=”750″ type=”1/1″ style=”padding: 0px;”][cs_block_grid type=”two-up” builder=”false”][cs_block_grid_item title=”Block Grid Item 1″ builder=”false”]Most new phones use a new charging standard called quick charger which uses a higher voltage to provide the needed current to charge your phone at a faster rate. Because of this, the higher voltage will damage the USB Tester Backpack as it runs at 5V and has no regulation.

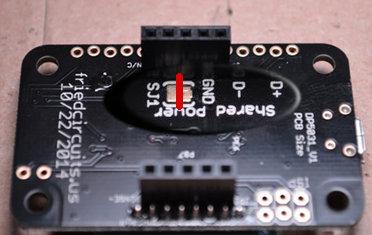

Fear not! You can still use it with a quick charger. It just needs a slight modification. The only change in operation will be for the OLED Backpack – it will need its own 5V USB power source. All you need to do is cut the solder jumper on the back side of the Backpack. The location is shown below.[/cs_block_grid_item][cs_block_grid_item title=”Block Grid Item 2″ builder=”false”]Cut1[/cs_block_grid_item][/cs_block_grid][/cs_column][/cs_row][/cs_section][/cs_content]
